Qt手动实现toggle button
xuchang 2023/12/10 cpp
自己手动写了个toggle button，代码如下
// toggle_button.h
#ifndef TOGGLEBUTTON_H
#define TOGGLEBUTTON_H
#include <QFrame>
#include <QPainter>
#include <QMouseEvent>
#include <QPropertyAnimation>
class ToggleButton : public QFrame
{
Q_OBJECT
public:
ToggleButton(QWidget* parent = nullptr);
private:
bool isOff = true; // 默认为关的状态
QBrush offBrush = Qt::black;
QBrush onBgBrush = Qt::blue;
QBrush offIndicatorBrush = Qt::red;
QBrush onIndicatorBrush = Qt::green;
QString offText = "OFF";
QString onText = "ON";
int curX;
QPropertyAnimation* animation = nullptr;
// QWidget interface
protected:
void paintEvent(QPaintEvent *event) override;
void mousePressEvent(QMouseEvent *event) override;
void resizeEvent(QResizeEvent *event) override;
};
#endif // TOGGLEBUTTON_H
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
// toggle_button.cpp
#include "toggle_button.h"
ToggleButton::ToggleButton(QWidget* parent)
{
this->setFixedSize({260, 100});
this->setWindowFlag(Qt::FramelessWindowHint);
this->setAttribute(Qt::WA_TranslucentBackground);
animation = new QPropertyAnimation(this);
animation->setTargetObject(this);
animation->setDuration(300);
curX = height() / 2;
connect(animation, &QPropertyAnimation::valueChanged, this, [=](const QVariant& value) {
curX = value.toInt();
update();
});
}
void ToggleButton::paintEvent(QPaintEvent *event)
{
Q_UNUSED(event);
QPainter painter(this);
painter.setRenderHint(QPainter::Antialiasing, true);
painter.setPen(Qt::NoPen);
painter.setBrush(isOff ? offBrush : onBgBrush);
painter.drawRoundedRect(this->rect(), height() / 2, height() / 2);
painter.setBrush(isOff ? offIndicatorBrush : onIndicatorBrush);
painter.drawEllipse(QPoint(curX, height() / 2), height() / 2 - 10, height() / 2 - 10);
painter.setPen(Qt::white);
painter.setFont(QFont("宋体", 30));
painter.drawText(this->rect(), Qt::AlignCenter, isOff ? offText : onText);
}
void ToggleButton::mousePressEvent(QMouseEvent *event)
{
if (event->button() == Qt::LeftButton) {
isOff ? animation->setDirection(QVariantAnimation::Forward) : animation->setDirection(QVariantAnimation::Backward);
isOff = !isOff;
animation->start();
}
}
// resizeEvent需要注意学习
void ToggleButton::resizeEvent(QResizeEvent *event)
{
Q_UNUSED(event);
animation->setStartValue(height() / 2);
animation->setEndValue(width() - height() / 2);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61

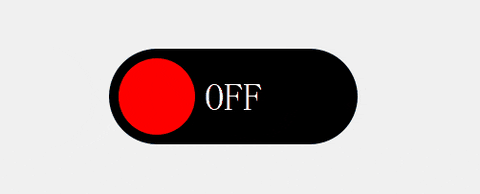

实现效果
